RS660 Season 2026

Aprilia RS660, Track Days, Data Acquisition, Suspension Setup

For the past five years, I’ve worked with motorcycle racers on data acquisition, lap simulation, and suspension setup. Last season, I decided to explore the other side of the equation—riding on track myself—to validate my approach to bike setup and coaching.

To do this, I chose the Aprilia RS 660—a platform I consider one of the most interesting combinations of engine and chassis performance in the middleweight class. With its short wheelbase, the bike offers strong agility and fast direction changes, while its advanced electronics provide a solid foundation for data integration and analysis.

This page provides a brief overview of the bike and its current setup as my track-focused development platform for the 2025 and 2026 seasons.

Project summary

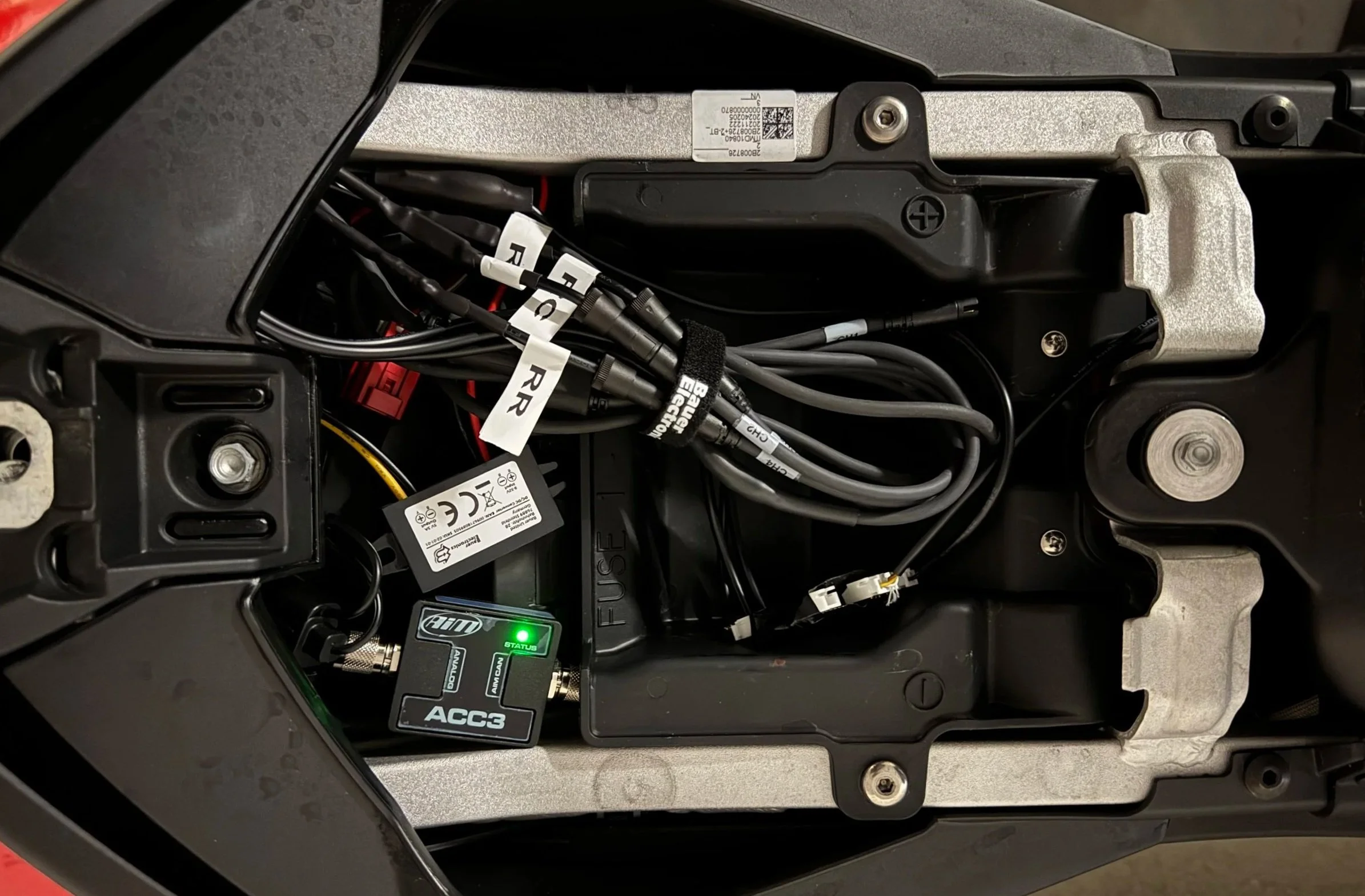

Data acquisition system

  • Solo 2DL v2
    (40+ ECU channels via CAN bus)

  • ACC3 expansion

  • ACC3 Open expansion

  • 4-way Data hub

Data logger

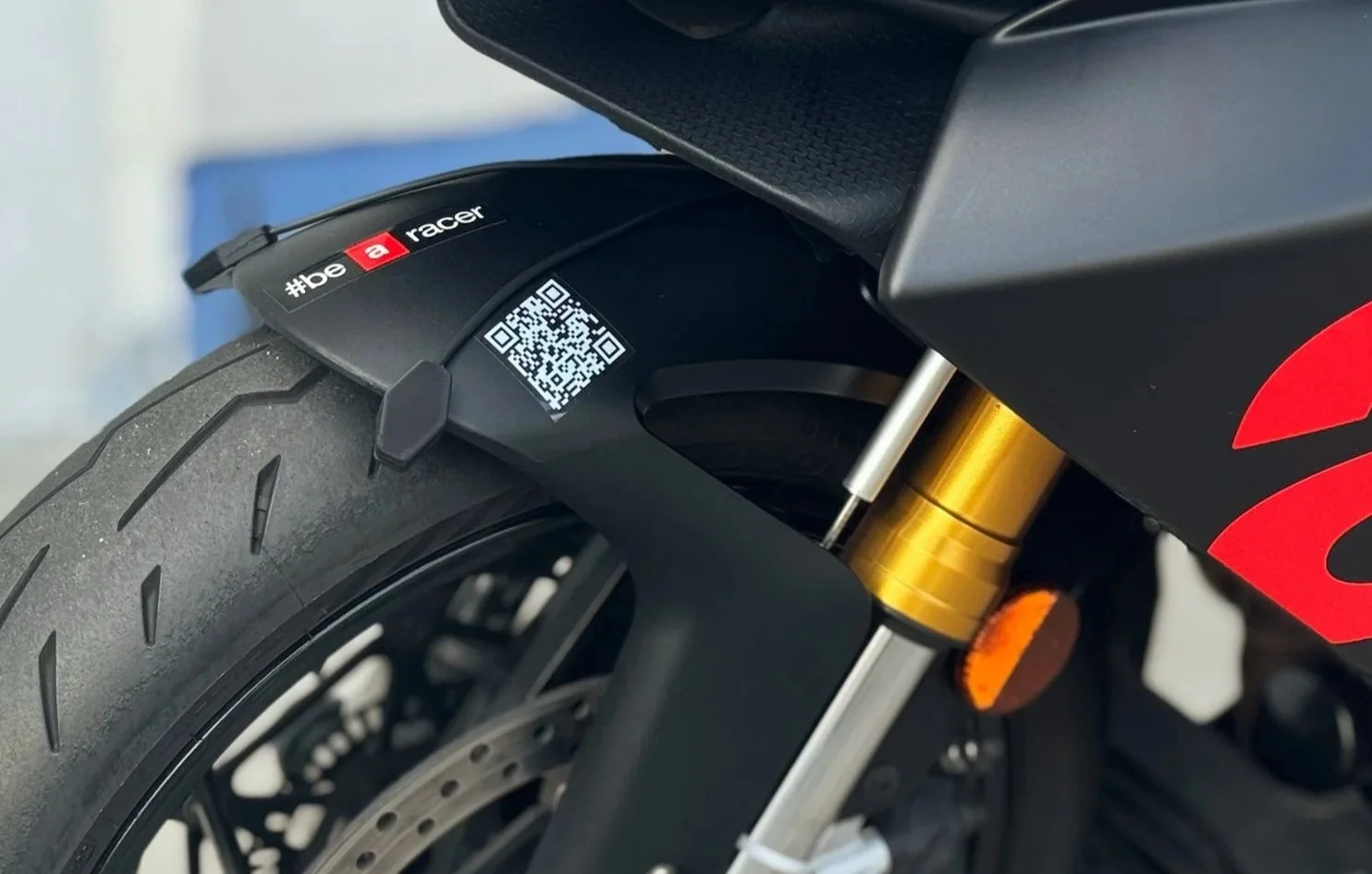

  • Front suspension potentiometer 150mm

  • 2x IR Tire temperature sensors
    (Left and Right sides at 45 deg. lean)

  • IR Brake rotor temperature sensor (optional)

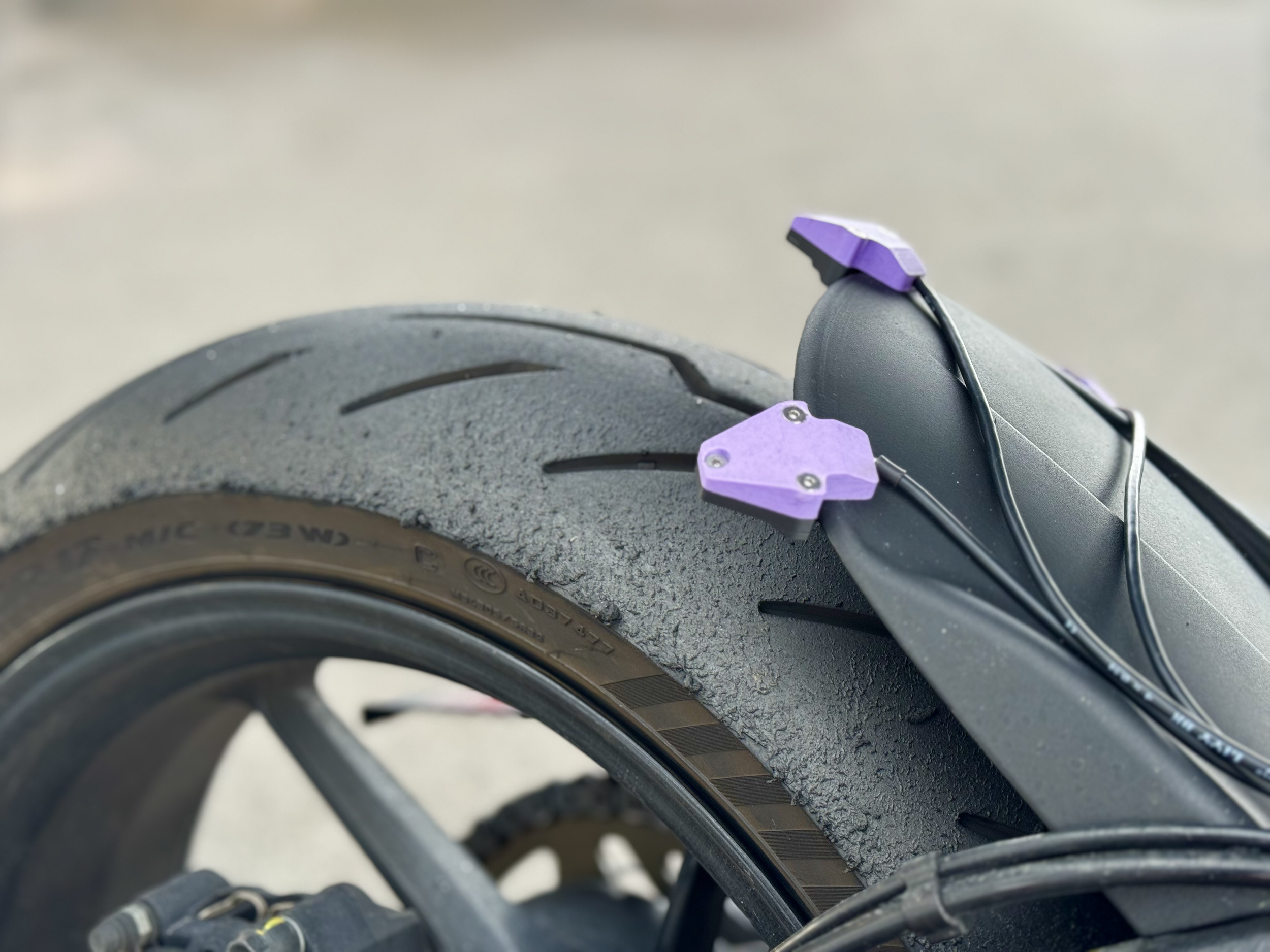

Rear Sensors Cluster

  • 3x IR Tire temperature sensors
    (Center, Left, and Right sides)

Front Sensors Cluster

Onboard data overlap

Bike Spec

  • Stock 100hp

  • Gearing 16T - 45T (track sensitive)

Engine and Drivetrain

  • Stock Fork cartridges and Shock

  • Decreased fork air gap

  • Rider Sag Front 30mm

  • Rider Sag rear 25mm

Suspension

Tires

  • Diablo Rosso IV

  • Front pressure 2.1 Bar
    (hot, track sensitive)

  • Rear pressure 1.9 Bar
    (hot, track sensitive)

  • Tall windscreen

  • Brake lever guard

  • Tank traction pads

Ergonomics

  • Wheels sliders

  • Clutch and Engine case protection

  • CFRP tank protection pads

  • Brake lever guard

  • Tank traction pads

  • Rear Cowl

Other accessories
